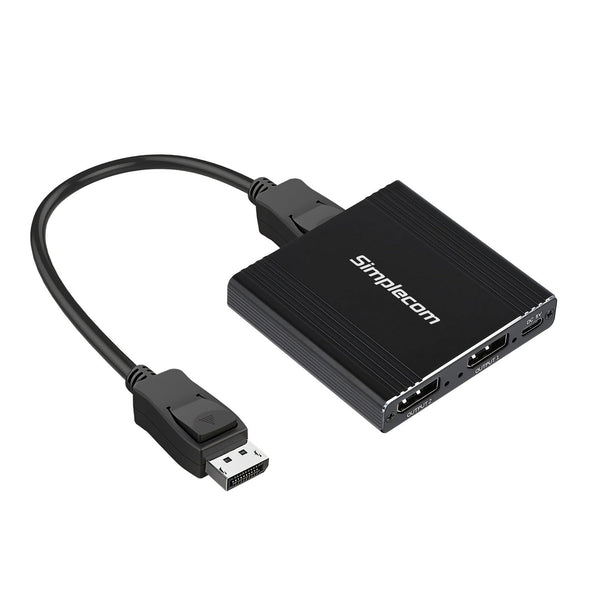

Simplecom Cm214 Displayport Splitter 1 In 2 Out Mst Hub For Dual Extended Screens 4K Dp 1.4

The Simplecom Cm214 Displayport Splitter Is The Perfect Solution For Expanding Your Workspace And Enhancing Productivity With Dual Extended 4K Displays. It Supports Both Mst (Multi-Stream Transport) Extended Mode And Splitter Mirrored Mode Providing Flexibility For Your Display Needs. Whether You're Working On Multiple Tasks Or Giving Presentations This Device Ensures Seamless Display Management And Excellent Video Quality.

Supporting Displayport 1.4 And A Maximum Bandwidth Of 32Gbps The Cm214 Delivers High-Performance Video Resolutions Up To 4K At 120Hz In Extended Mode And 4K At 144Hz In Mirrored Mode. With A Built-In 3.5Mm Audio Jack You Can Connect Speakers Or Headphones For An Enhanced Multimedia Experience. Its Durable Aluminum Alloy Casing Helps Dissipate Heat Ensuring Long-Lasting Reliability And Performance.

This Compact Plug-And-Play Splitter Requires No Additional Drivers And Is Powered Via Usb Making It A Hassle-Free Solution For Expanding Your Display Setup.

Features:

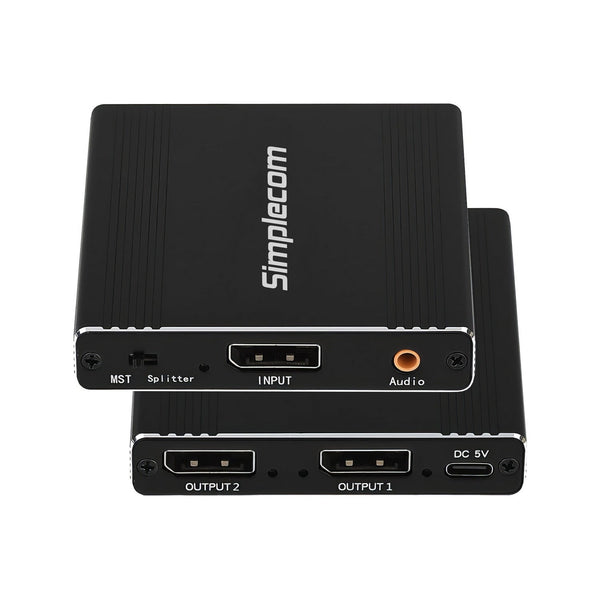

• 1 Input 2 Output Displayport 1.4 Splitter With Mst Mode For Extended Displays
• Two Operating Modes: Mst Extended Mode (For Dual 4K Displays) And Splitter Mirrored Mode (For Identical Displays)
• Supports Dual 4K Displays In Mst Extended Mode
• Compliant With Displayport 1.4 Supporting Bandwidth Up To 32Gbps
• Built-In 3.5Mm Audio Jack For Connecting Speakers Or Headphones
• Durable Aluminum Alloy Casing That Also Helps Dissipate Heat
• Compact And Design For Easy Installation And Transport
• Powered By Usb; Plug-And-Play With No Drivers Required

Specifications:

• Model: Cm214
• Displayport Version: Dp 1.4
• Output Resolution: Up To 4K144hz In Mirrored Mode Up To 4K120hz In Extended Mode
• Max Bandwidth: 32Gbps
• Max Cable Distance: 10M Input + Output
• Power Input: Usb-C Dc 5V
• Max Operation Power: 5V2a
• Operating Temperature Range: -5°C To 55°C
• Operating Humidity Range: 5 To 90Rh (No Condensation)
• Dimensions (L X W X H): 7.4 X 7.4 X 1.4 Cm
• Weight: 35G

Package Contents:

• 1X Displayport Splitter (1 In 2 Out)
• 1X Displayport Short Cable
• 1X Usb Power Cable
• 1X 5V2a Usb Power Adapter

System Requirements:

• A Laptop Or Desktop Pc With Displayport Output
• Full-Function Usb-C Port With Dp Alternate Mode On The Pc (A Usb-C To Dp Cable Is Required To Connect The Splitter Not Included)
• To Support Mst With 2 Extended Screens A Native Displayport From A Discrete Graphics Card Or Integrated Graphics From An Intel 6Th Gen Skylake Processor Or Later Is Required
• For 120Hz And Higher Refresh Rates A Dp 1.4-Enabled Displayport On The Pc And A Dsc Display Stream Compression-Enabled Monitor Are Required
• Windows 10 Or Later Is Required For 2 Extended Screens Support. Macos Does Not Support Mst And Only Allows 2 Dp Outputs In Mirrored Mode

Important Notes:

• Dp Output Resolution Is Dependent On The Pc's Gpu Capability
• Displayport From A Docking Station Or Video Converter Does Not Support Mst Extended Mode
• For A Stable Connection Please Use High-Quality Dp1.4 Cables
• Macos Does Not Support Mst And Only Allows 2 Dp Outputs In Mirrored Mode
• Powered By Usb. Usb-C Power Cable Can Be Plugged Into A Usb Port On The Computer For 4K60hz Or Lower Resolution. Please Use The Included Usb Power Adapter For 4K120hz And Higher Refresh Rates
