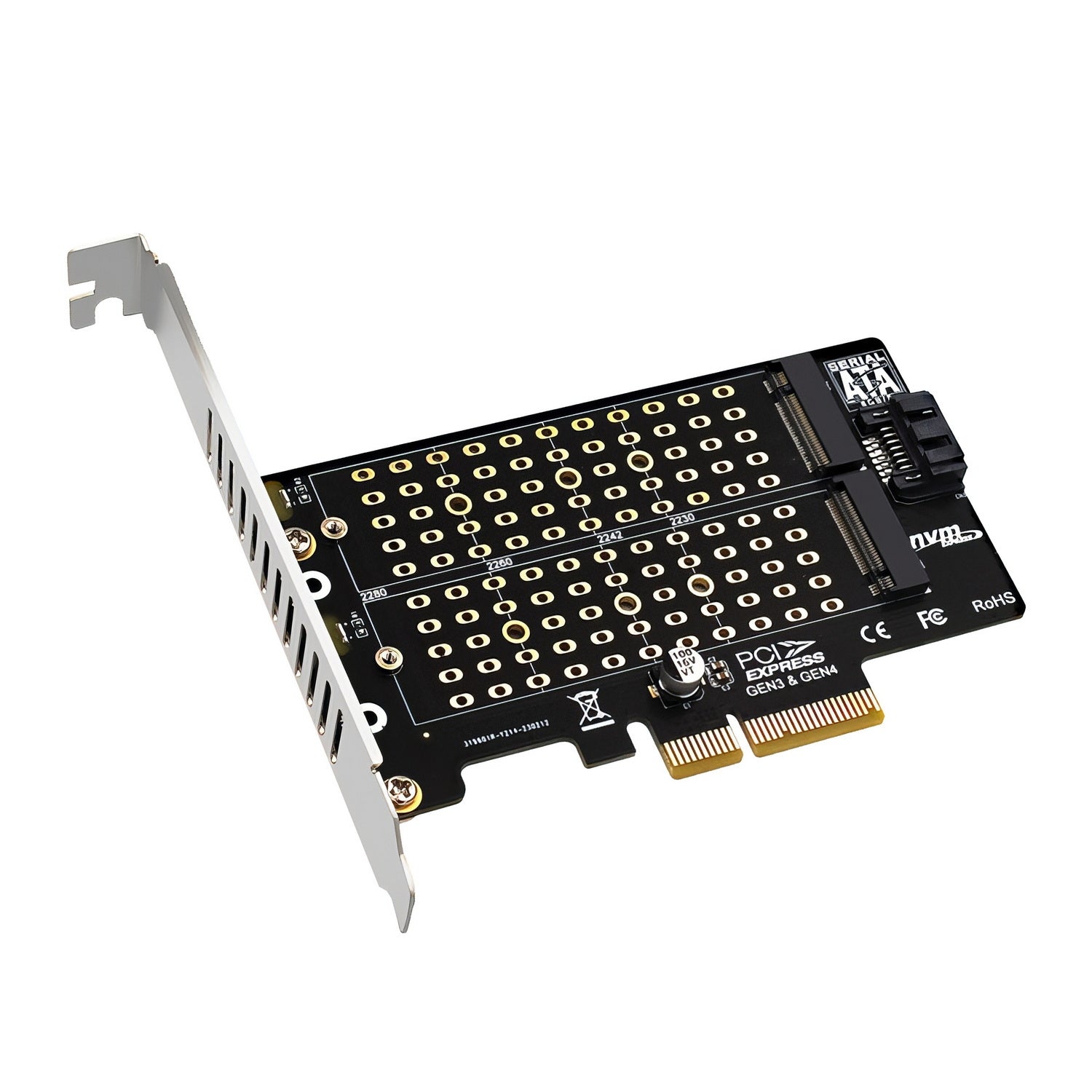

Simplecom Ec412v2 Nvme Sata M.2 Ssd Pcie X4 Expansion Card Other Interface/Add On Cards

Simplecom Ec412v2 Nvme And Sata M.2 Ssd To Pcie X4 Expansion Card

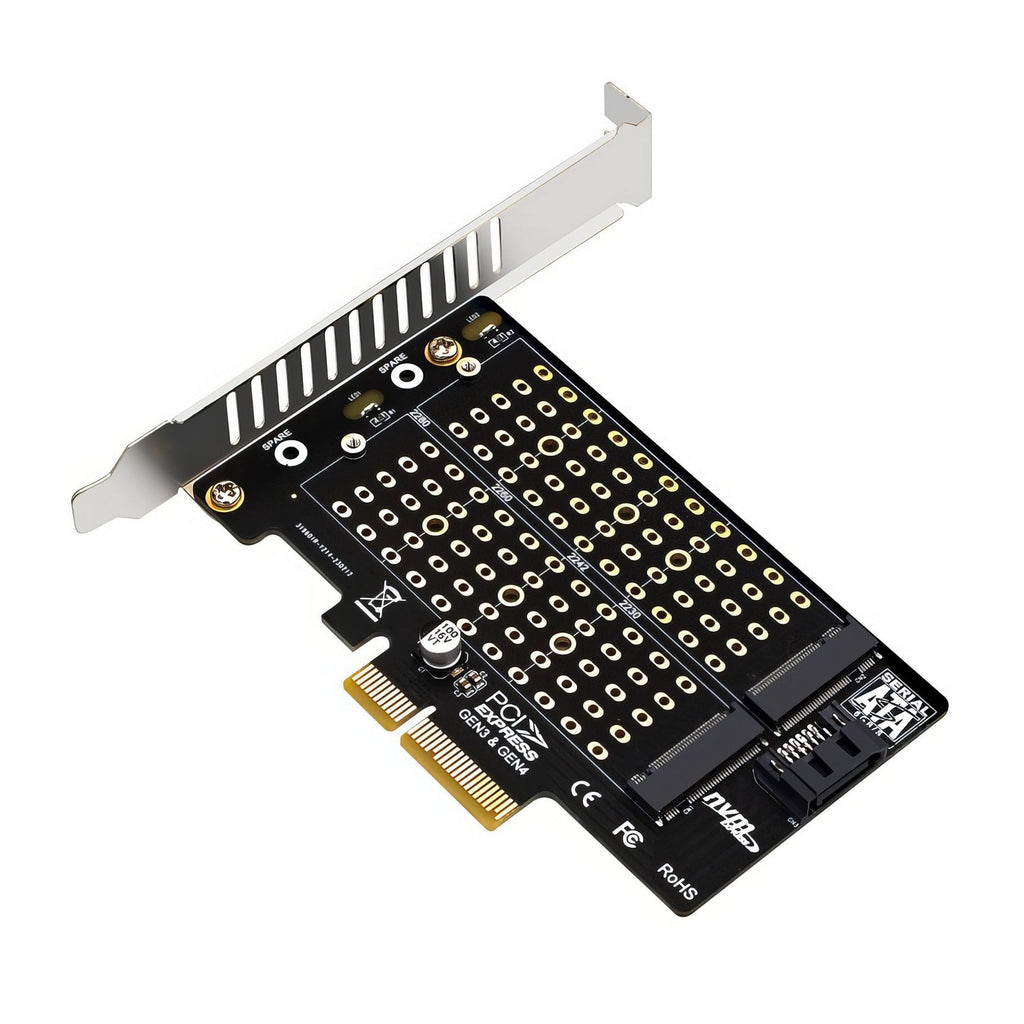

The Ec412v2 Is A Pci Express Expansion Card Designed To Add M.2 Ssd Support To Your Existing Pc Motherboard. This Card Features Two M.2 Slots Providing Flexible Support For Both Nvme And Sata-Based M.2 Ssds Allowing You To Upgrade Your Storage With Ease.

The M Key M.2 Slot Is Dedicated To Pcie-Based Nvme Ssds Utilizing The High-Speed Pci Express Interface. This Ensures Significantly Faster Data Transfer Rates Reaching Up To 64Gbps Which Is Ideal For Demanding Applications Large File Transfers And Improved System Responsiveness.

The B Key M.2 Slot Is Designed For Traditional Sata M.2 Ssds Supporting Data Transfer Rates Up To 6Gbps Via A Sata Connector. This Is Perfect For Users Who Need Reliable Storage Without The Need For Ultra-Fast Speeds.

This Expansion Card Offers The Convenience Of Integrating Both High-Performance Nvme M.2 Ssds And Traditional Sata M.2 Ssds At The Same Time Making It An Adaptable Solution For Enhancing And Expanding The Storage Of Existing Systems.

Features:

• One M Key M.2 Slot For Nvme M.2 Ssd
• One B Key M.2 Slot For Sata M.2 Ssd

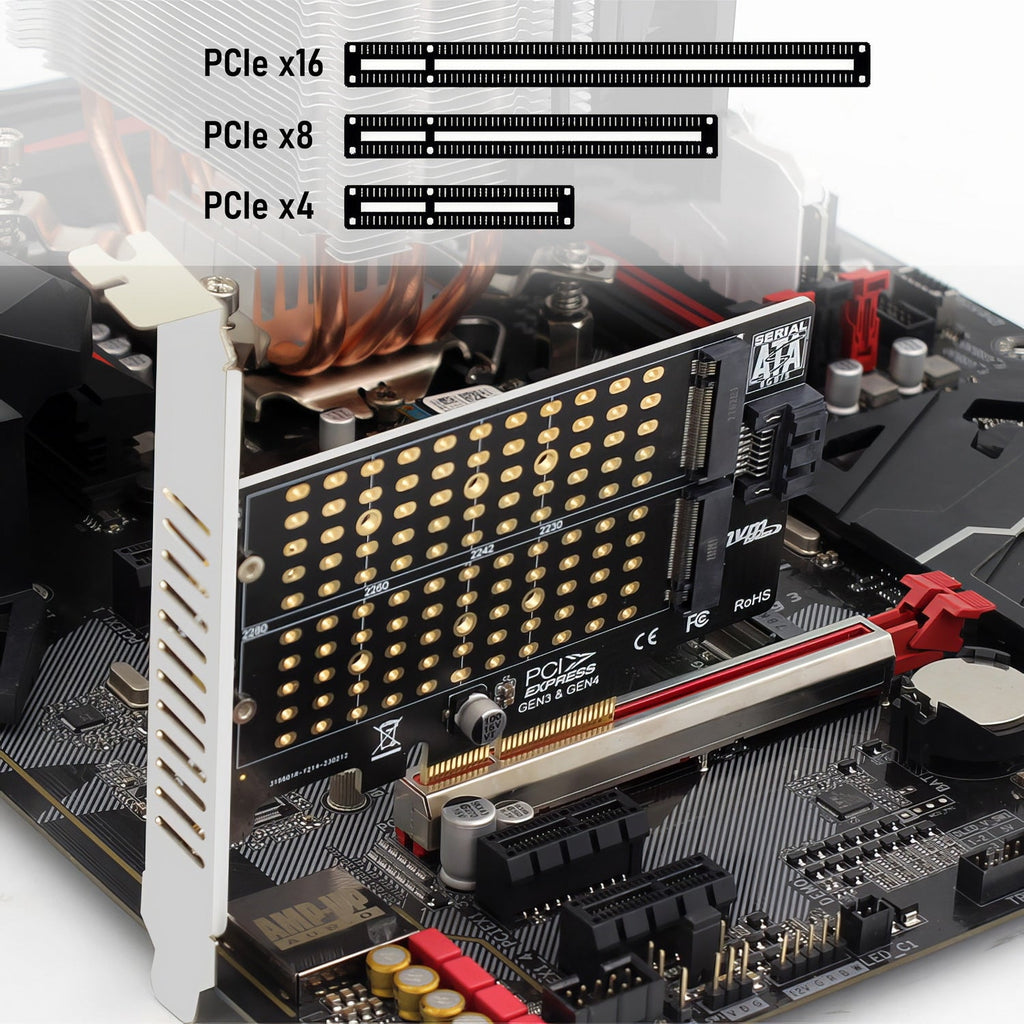

• Pcie X4 Interface Also Compatible With Pcie X8 Or X16 Slots
• Nvme M.2 M Key Slot Supports Data Transfer Rates Up To 64Gbps
• Sata M.2 B Key Slot Supports Data Transfer Rates Up To 6Gbps
• Supports Both Nvme M.2 And Sata M.2 Ssds Simultaneously

Specifications:

• Model: Ec412v2
• Interface: Pci Express X4 Sata 6Gbps
• Number Of Supported M.2 Drives: 2
• Module Key: B Key For Sata M.2 M Key For Nvme M.2
• Pcie Bandwidth: Up To 32Gbps Pcie 3.0 64Gbps Pcie 4.0
• Sata Bandwidth: Up To 6Gbps

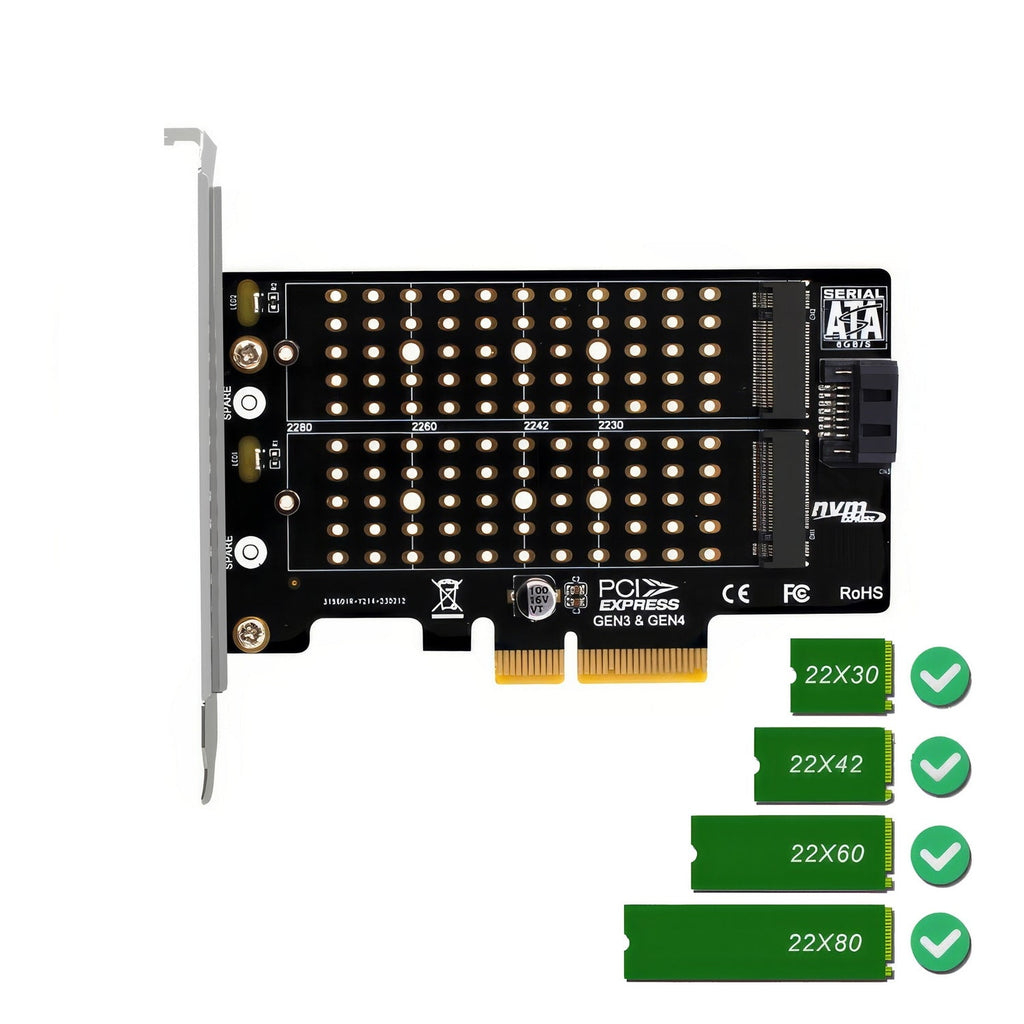

• Supported M.2 Ssd Sizes: 2230 2242 2260 2280

You Will Receive:

• 1X Pcie Expansion Card
• 1X Low Profile Bracket
• 1X Sata Cable
• Screws Set

Important Notes:

• The M Key M.2 Slot Is For Nvme M.2 Ssds Only And The B Key M.2 Slot Is For Sata M.2 Ssds Only.
• Sata M.2 Ssds In The B Key Slot Require A Sata 7-Pin Data Cable Connection To The Motherboard For Proper Operation.
